2100mmx500mm Electric OT Table

Electric Operating Table Hospital Equipment Surgical Opeartion Table

Description of Operating Table:

This Electric Operating Table ECOH005 is designed for all kinds of operations in hospitals.

Besides all functions of the Chinese-built operating tables.

The Electric Operating Table has own advantages:

1. Leg section can be rotated, opened, disassembled and adjusted easily.
It is most suitable for the urological operation.

2. The table top, made of highstrength plastic plate, can move backwards and forwards, X-ray examination can be carried out on it.

3. With 24V direct supply, the table is safe and reliable. The table's elevation, lowering, reversed trendelenburg; trendelenburg , lateral tilt are all automatically controlly by the Button.

4. This table can be disposed different kinds of table tops for different use.It can be used for operating room table.

5.The ascending and descending movements, lateral tilt movements,reversed
trendelenburg, trendelenburg movements adn backward and forward movements of the table top are all electrically operated.

Electric Operating Table is one of the most advanced operating table with excellent functions in China. Availabe for the Model C arm.
The back section and the leg section of Model ECOH005 is equiped with the barometric Pressure spring. Senior PY foam material is optional for mattress.


Main Usage: Electric operating table can be operated for clinical use.

Structure : Electric Operating Table consists of two parts: mechanical and electro-hydraulic control system.Depending on manual operation, the product can meet the requirement of posture in clinical operation.Electric Operating Table is made up of the table top, the main part, the electric controlling part and the accessories, etc. It's raising, lowering, lateral tilt, trendelenburg and reversed trendelenburg,backward and forward movements are all drived by the motors.

Dimension of table top:
Overall Length.............................................2100mm
Width............................................................500mm
Dimension of section:
Head Section...............................................250×500mm
Back Section...............................................545×500mm
Seat section.................................…...........450×500mm
Leg Section.................................................600×240mm
Kidney Bridge.............................................75×500mm
Foot Section.................................….........180×273mm
Table top of from floor
Min Height..............................….................750mm
Max Height..................................................1000mm
Adujst...........................................................250mm
Range of movements:
Reversed Trendelenburg...........................≥20°
Trendelenburg.............................................≥15°
Lateral Tilt....................................................≥15°
Backward and Forward Movements........≥400mm
Adjustment of sections:
Head Section Raised from the horizontal...≥45°
Head Section lowered from the horizontal..≥90°
Back Section Raised from the horizontal..≥45°
Kidney Bridge Elevated..............................≥80mm
Leg Section Lowered from the horizontal...≥90°
Leg section opened..................................…≥90°
safe working load.........................................135kg
Lifting speed.................................................4~16mm/s


Foot and leg board board into a horizontal or vertical.
Device safety sort I B
IPX4 Ingress Protection:IPX4
220V,50Hz Power:(AC)220V,50Hz
(DC)24V Internal electric source:(DC)24V
Battery capacity ≥ 2.4AH

Standard Accessories:

2100mm Electric OT Table

135kg medical operation table

500mm Electric OT Table

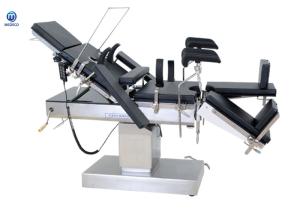

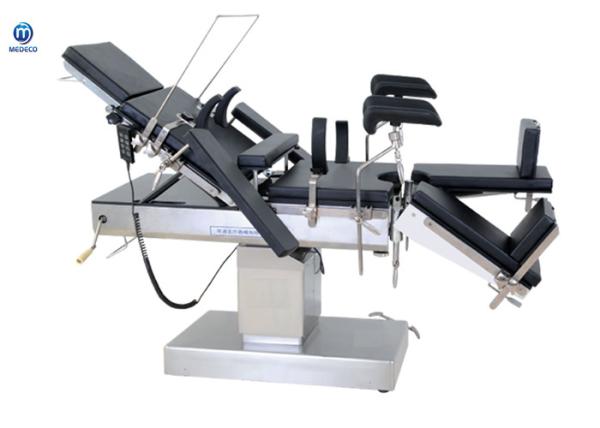

2100mmx500mm Electric OT Table Images
